Introduction
It is essential that your SmartHeart® is properly fitted and sized. The size is critical to your SmartHeart® profile and ensures ECG readings are accurate.
-
-
Sizing the elastic belt attached to the SmartHeart® is essential to a snug fitting.
-
Slide the Buckle away from the electrode belt to increase the length
-
The T-Shaped buckle can be adjusted as you are locking it into place to ensure a proper fitting.
-
The closer the buckle is to the electrode belt, the shorter the elastic belt will be.
-
-
-
Position the SmartHeart® housing in the center of your chest
-
The electrode belt should be half an inch below your nipple.
-
Hold the Electrode belt in place with your left hand
-
-
-

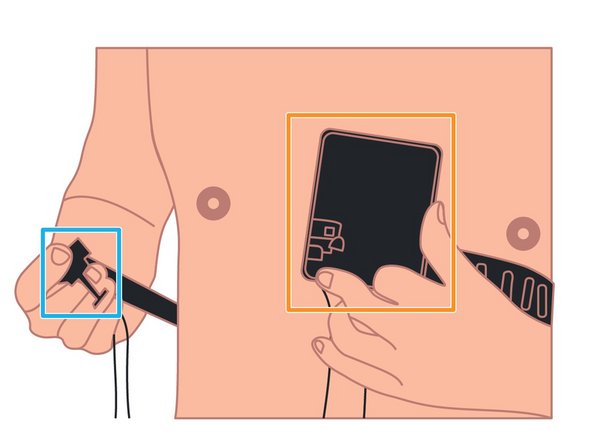

Center and hold the SmartHeart® housing with your left hand
-

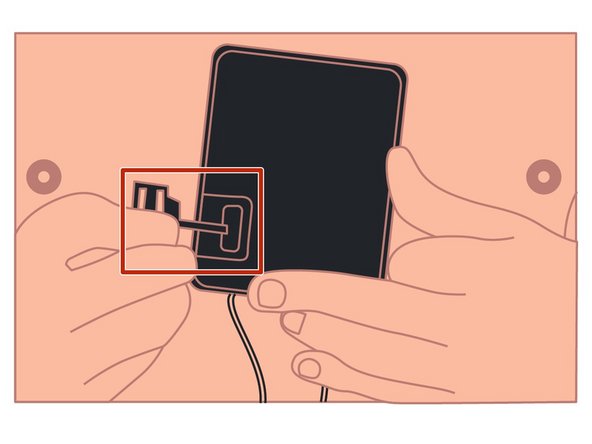

Hold the strap just below the T-Shaped buckle
-
Place the T-Shaped buckle into the SmartHeart® housing
-
The T-Shaped buckle only fits in one direction to ensure the strap does not flip.
-
-
-

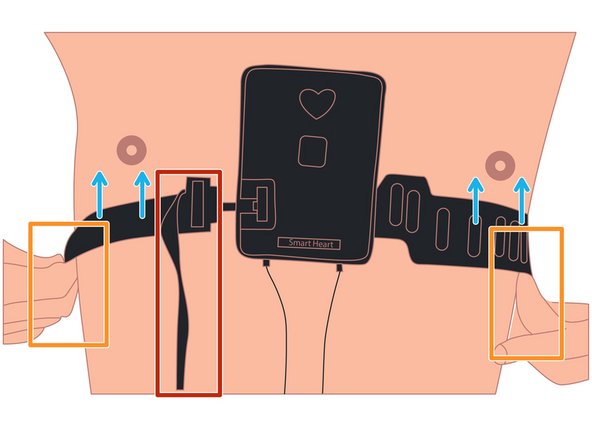

Slide your fingers under the sides of the SmartHeart® belt
-
Lift and adjust the belt
-
To secure the fitting:
-
Pull the band at the T-Shaped belt
-
The SmartHeart® electrode belt must be half an inch under your nipple.
-
-
-

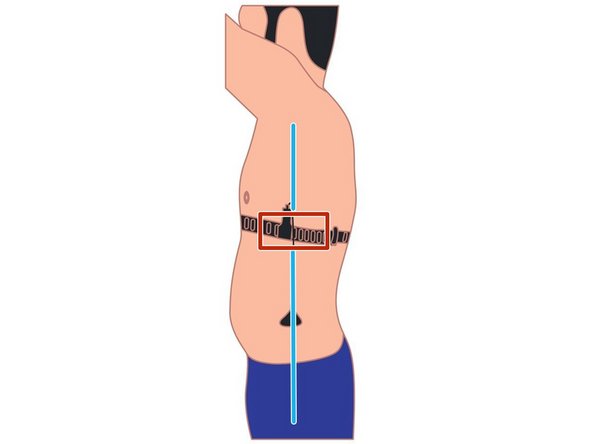

Identify the imaginary line from your hipbone to your left underarm
-

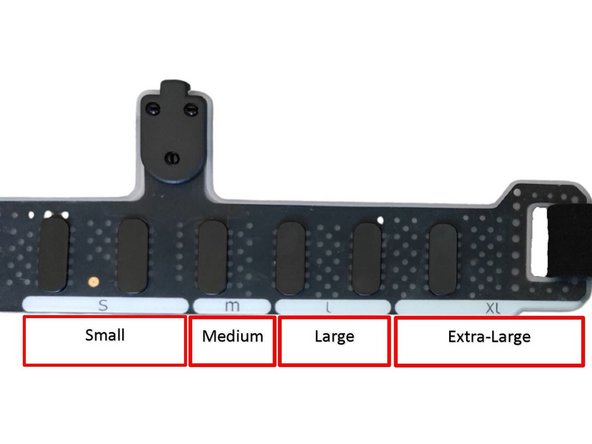

Determine the size segment the imaginary line intersects
-
In this example, the size determined is "M".
-
